Payload : 6.8 Tons maxi

Operating speed : 6 km/h maxi

Refrigeration unit with 2 energies of functioning

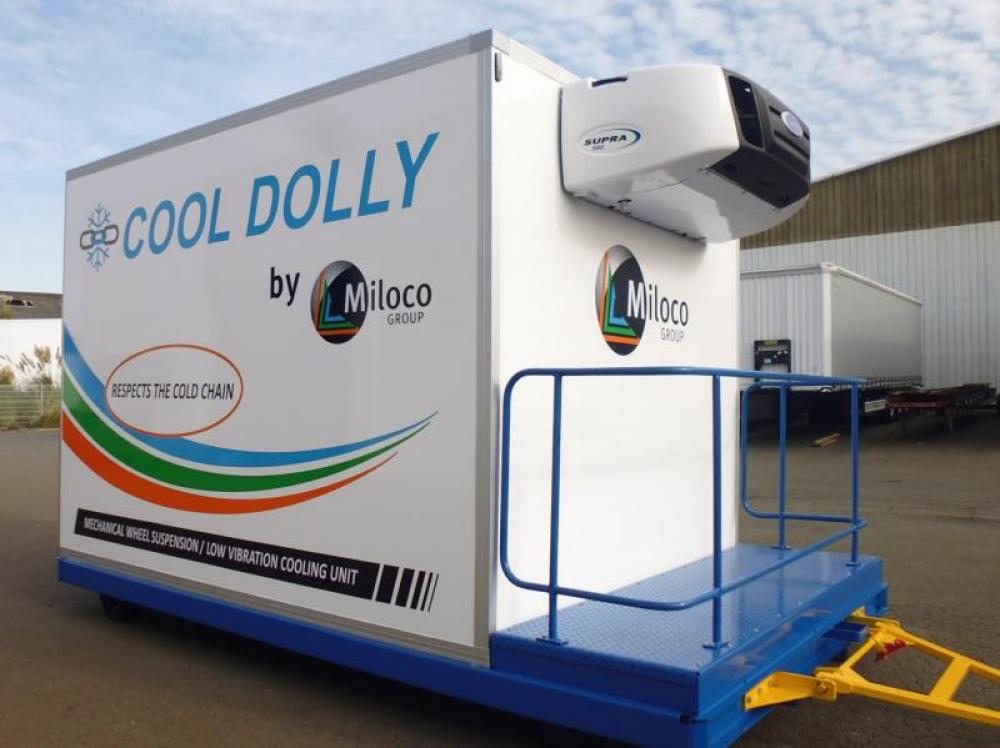

COOL DOLLY Type MS 1703
Payload : 6.8 Tons maxi
Operating speed : 6 km/h maxi

Capacity :
1 Pallet (P6) : 96"x125" (6.8 tons)
1 Pallet (P1) : 88"x125" (4.5 tons)
1 Pallet (HCU-6E) : 88"x108" (4.5 tons)
END TRANSFER : By rear end only
END TOWING : Drawbar hinged at the front end 96"

Châssis :
-Frame in profiles of steel welded
Directional system:
- Front: 3 swivelling castors with twin wheels.
- Rear: 4 twin wheels fixed on the frame.
Wheels:
- 14 super elastic tyres type 15x4½-8 mounted on steel rim.
All the wheels are equipped with a suspension.
Coupling system :
-Triangular tow-bar with towing ring inner ø 52 mm.
Automatically lockable in upright rest position.
-No rear hook
Parking brake :
By brake-shoes, acting on 4 of 8 rear wheels.
Operated:
-automatically by falling down of the drawbar.
-or voluntarily by raising of the drawbar in upright position.
Automatically released only when drawbar is in towing position.
Braking system permit to maintain the dolly in 7% slope.

Load surface :
-Roller bed inside the isothermal box
-54 rollers ø 70x300 mm, distributed on 4 longitudinal rows
-On each longitudinal side 3 fixed guides in steel sheet
-On the right longitudinal side, 2 hinged guides for 88 "
-One pair of stops at the end 96"
-One pair of stops at the end 88"
-3 walkways between the 4 rollers rows
-Workking height : 508 mm (- 0 + 10 mm),
in accordance with international standard : 20 inches.
Isothermal box:
Cooled cell was mounted on a steel frame,
panels "sandwich" makes of a layer of insulation between
two movie of polyester supply the excellent heat insulation.
The load by the rear side via a door with vertical opening
similar to the model FIT® isotherm.
Two lamp LED of ceiling supplies in the lighting.
Refrigeration unit with 2 energies of functioning :
-thermal with a diesel engine with a fuel tank of a capacity of 90 L
-electric fed by a cable on drum for connection on the sector via a socket
-Capacity on engine power 0°C : 10 300 W
-Capacity on electrical stand by 0°C : 9 600 W
-Airflow : 2770 m3/h
Safety signs:
Fluorescent reflectors, two white at front and two red at rear
Alternate red and white stripes self-adhesives on frame angles.
Protection:
White polyurethane paint RAL 9010 (frames, tow-bar, swivel assemblies ...).
Zinc coated (rollers, stops, hinged guides...).
Or other colour on request.
