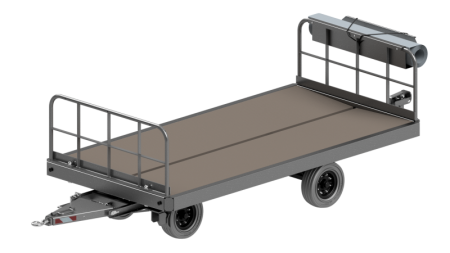

Bagage trailer with single swing axle designed for carrying baggage and cargo in airports.

Payload:2500 Kg at 25 Km/h

Loading height: 540 mm / 21.26"

Chassis

• Structure: Hot-rolled steel profiles, welded mechanically, providing a strong base for the trailer.

Running Gear

• Front: A straight steering axle, bolted to the steering frame and connected to the chassis via an indestructible ball bearing crown. The front axle can pivot 360°.

• Rear: A straight axle bolted to the chassis for added stability.

Hitch

• Front Towbar: Articulated and triangulated, equipped with a shock-absorbing ring (inner diameter 55 mm) and an articulated maneuvering handle.

• Rear Towbar: Fixed and triangulated, with a secure, non-removable pin-type hitch.

Deck

• Material: 18 mm thick plywood on the exterior, with anti-slip treatment on one side.

• Design: The floor consists of two parts mounted in a "V" shape towards the center to keep the luggage in place.

Sides

• Front and Rear Sides: Tubular with vertical rails.

• Height: 1000 mm.

Axles

• Configuration: Front and rear axles with square shafts, featuring sealed hubs with tapered bearings.

• Mounting: Axles are bolted to the chassis.

Wheels

• Type: Soft, solid tires of type 4.00x8, with a steel 4-hole rim.

Braking

• Parking Brake: Drum brake activated by lowering the towbar and lifting the towbar, which acts on the front wheels.

Finish

• Treatment: Hot-dip galvanization for the mechanically welded elements.

• Paint: Painted mechanical elements (axles, crown, etc.).

• Bolts: Zinc-plated for corrosion resistance.
